U-shaped strap muscle flap for difficult thyroid surgery
Original Article

U-shaped strap muscle flap for difficult thyroid surgery

How-Yun Ko1, I-Cheng Lu2,3, Pi-Ying Chang3, Ling-Feng Wang1,2, Che-Wei Wu1,2, Wing-Hei Viola Yu1, Tzer Zen Hwang4,5, Chien Chung Wang5, Tzu-Yen Huang1,6, Feng-Yu Chiang4,5

1Department of Otolaryngology-Head and Neck Surgery, Kaohsiung Medical University Hospital, Kaohsiung Medical University, Kaohsiung, Taiwan; 2Faculty of Medicine, College of Medicine, Kaohsiung Medical University, Kaohsiung, Taiwan; 3Department of Anesthesiology, Kaohsiung Medical University Hospital, Kaohsiung Medical University, Kaohsiung, Taiwan; 4School of Medicine, College of Medicine, I-Shou University, Kaohsiung, Taiwan; 5Department of Otolaryngology, E-Da Hospital, Kaohsiung, Taiwan; 6Department of Biological Science and Technology, National Chiao Tung University, Hsinchu, Taiwan

Contributions: (I) Conception and design: FY Chiang, TY Huang; (II) Administrative support: FY Chiang, TY Huang; (III) Provision of study materials or patients: FY Chiang; (IV) Collection and assembly of data: HY Ko, TY Huang; (V) Data analysis and interpretation: HY Ko, TY Huang; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Feng-Yu Chiang, MD. Department of Otolaryngology, E-Da Hospital, I-Shou University, No.1, Yida Road, Yanchao District, Kaohsiung 82445, Taiwan. Email: fychiang@kmu.edu.tw; Tzu-Yen Huang, MD. Department of Otolaryngology-Head and Neck Surgery, Kaohsiung Medical University Hospital, 100 Tzyou First Road, Kaohsiung 807, Taiwan. Email: tyhuang.ent@gmail.com.

Background: Open thyroidectomy via conventional midline approach can be challenging in complex thyroid surgeries. This study proposes a U-shaped strap muscle flap (USMF) technique that provides adequately wide exposure of the surgical field.

Methods: Strap muscles were cut close to the clavicle and along the anterior margin of both sternocleidomastoid muscles followed by total thyroidectomy in 20 patients as USMF group, and surgical outcomes were compared with 40 patients who had received total thyroidectomy via midline approach.

Results: No patient had postoperative hematoma, vocal cord paralysis, permanent hypocalcaemia, wound infection or flap necrosis. At 2 months post-surgery, objective voice analysis and subjective assessment of voice and swallowing showed no significant difference between groups.

Conclusions: USMF provides superb surgical field exposure, and the voice and swallowing functions after USMF are comparable to those obtained by midline approach. The USMF approach is a feasible option for selective difficult thyroid surgery.

Keywords: U-shaped strap muscle flap (USMF); thyroid; voice; swallowing; thyroidectomy


Submitted Feb 01, 2020. Accepted for publication Feb 14, 2020.

doi: 10.21037/gs.2020.02.20


Video 1 U-shaped muscle flap video

Introduction

Wide and adequate exposure of the surgical field is essential for successful thyroid surgery. The most common procedure for conventional open thyroidectomy is the midline approach, in which the strap muscles are divided along the linea alba and separated from the thyroid gland. However, midline approach may be difficult to perform in some patients, including patients with huge goiter, large Graves’ disease, thyroid cancer with lateral neck metastasis, obesity and short neck. An insufficient surgical field exposure not only increases operation time and blood loss, it also increases the risk of injury to the recurrent laryngeal nerve (RLN) and parathyroid gland (PG) due to poor visibility during surgical dissection (1).

The aim of this study was to evaluate the U-shaped strap muscle flap (USMF) approach that provides excellent exposure of the surgical field. Postoperative objective voice analysis and subjective assessment of voice and swallowing were also performed to evaluate USMF outcomes, including voice and swallowing function.


Methods

From January, 2017 to June, 2018, this study enrolled 20 patients who had received total thyroidectomy by USMF approach, including 15 with huge goiters, 2 with large Graves’ disease, and 3 with thyroid cancers with lateral neck metastasis. The USMF was performed as follows. After elevation of the skin flap, the strap muscles were cut at a lower margin close to the clavicle and then cut along the anterior margin of both sternocleidomastoid muscles. The strap muscles were then separated from the thyroid gland and elevated to the superior level of thyroid cartilage (Video 1). After complete resection of tumors, the muscle flap was sutured back to its original position. Figure 1 shows the USMF approach for a huge goiter, and Figure 2 shows the USMF approach for thyroid cancer with lateral neck metastasis.

Figure 1 Thyroid surgeries via U-shaped strap muscle flap (USMF) approach. Huge goiter (16 cm × 13 cm) with tracheal compression: (A) appearance; (B) computed tomography image. (C) conventional open thyroidectomy with adequate skin flap elevation; (D) straps muscles were cut at lower margin close to the clavicle and cut along the anterior margin of both SCM muscle; (E) the strap muscles were separated from the thyroid gland and elevated to the superior level of thyroid cartilage to achieve wide and adequate exposure of surgical field for total thyroidectomy; (F) USMF was sutured back to the original position. SCM, sternocleidomastoid muscle.
Figure 2 Thyroid cancer with lateral neck metastasis (A) and outcome of USMF approach in a total thyroidectomy with central and lateral neck dissection (B).

In all patients, analyses of ionized calcium (iCa) level and vocal cord function, objective analysis of voice, and subjective analyses of voice and swallowing were performed before surgery and 2 months after surgery. Another 40 patients who had received total thyroidectomy by midline approach during the same time period were used as a control group to compare voice and swallowing outcomes. All surgeries were performed under neural monitoring by a single surgeon (FY Chiang).

Evaluation of serum iCa and vocal cord function

In all patients, iCa was measured before and 12, 24, 48, and 72 hours after surgery. Postoperative hypocalcemia (PH) was considered permanent if iCa did not recover and calcitriol/calcium supplements could not be withdrawn 12 months after surgery. Vocal cord mobility was routinely video-recorded by flexible laryngofiberscopy before and after surgery. A dysfunction was considered permanent if abnormal vocal cord movement persisted 6 months after surgery.

Objective voice analysis

Objective voice analysis was performed preoperatively and 2 months postoperatively. The assessments were performed by an experienced speech-language pathologist using Multidimensional Voice Program (MDVP, model 5105, version 3.1.7; KayPENTAX, USA) and Voice Range Profile (VRP, model 4326, version 3.3.0; KayPENTAX, USA). Maximum pitch frequency (Fmax), minimum pitch frequency (Fmin), pitch range (PR), maximum phonation time (MPT), mean fundamental frequency (mean F0), Jitter (Jitt), and Shimmer (Shim) were recorded. The PR was defined as the number of semitones between Fmax and Fmin.

Subjective assessment of voice and swallowing

The severity of voice and swallowing abnormalities was evaluated by questionnaires (Table 1). The scores resulting from the questionnaires were defined as voice impairment score (VIS) and swallowing impairment score (SIS). The VIS and SIS scores ranged from 1 (no impairment of voice or swallowing) to 5 (severe impairment of voice or swallowing).

Table 1
Table 1 Subjective voice and swallowing evaluation questionnaires
Full table

Calculation of postoperative change in voice analysis data

The equation used to calculate postoperative changes in voice analysis data was

Where A and B are preoperative and postoperative values, respectively.

Statistical analysis

The statistical software used for all t-tests was SPSS (Version 18.0 for windows; SPSS Inc., Chicago, IL, USA). A P value less than 0.05 was considered statistically significant. This study was approved by the Kaohsiung Medical University Hospital Institutional Review Board [No. KMUH-IRB-E(I)-20190201].


Results

All 20 thyroid surgeries performed by USMF approach were uneventful and had no adverse events (e.g., no postoperative hematoma, wound infection or flap necrosis).

The USMF group and the midline group did not significantly differ in gender, mean age, histopathology, PH rate or vocal cord palsy. Temporary PH occurred in 3 (15.0%) patients in the USMF group and in 2 (5.0%) patients in the midline group, and no patients had permanent PH. Neither group had patients with transient or permanent vocal cord palsy. Preoperative objective voice analysis revealed that no parameters differed between the USMF group and the midline group. Between-group comparisons revealed that the USMF group had significantly higher VIS (16.13±6.87 vs. 9.45±6.51 in midline group, P=0.001) and significantly higher SIS (9.70±3.91 vs. 6.25±4.32 in midline group, P=0.001). Table 2 shows the results of preoperative subjective assessments of voice and swallowing.

Table 2
Table 2 Demographic and clinical characteristics of USMF group and midline group
Full table

Table 3 compares preoperative and 2-month postoperative voice and swallowing outcomes. Objective voice analysis at 2 months post-surgery showed significantly lower Fmax and PR in both groups. Subjective assessments revealed no significant VIS change in the USMF group (preoperative VIS 16.13±6.87 vs. postoperative VIS 15.70±4.91; P=0.010). In the midline group, however, VIS significantly increased (preoperative VIS 9.45±6.51 vs. postoperative VIS 10.25±7.28; P=0.010). In contrast, SIS did not significantly differ in either the USMF group (preoperative SIS 9.70±3.91 vs. postoperative SIS 9.10±2.57; P>0.05) or in the midline group (preoperative SIS 6.25±4.32 vs. postoperative SIS 6.48±4.60; P>0.05).

Table 3
Table 3 Comparison of preoperative and postoperative 2 months voice and swallowing outcomes in USMF and midline group
Full table

Between-group comparisons of preoperative and 2-month postoperative Δ value of objective voice analysis and subjective assessment of voice and swallowing showed no significant difference (Table 4).

Table 4

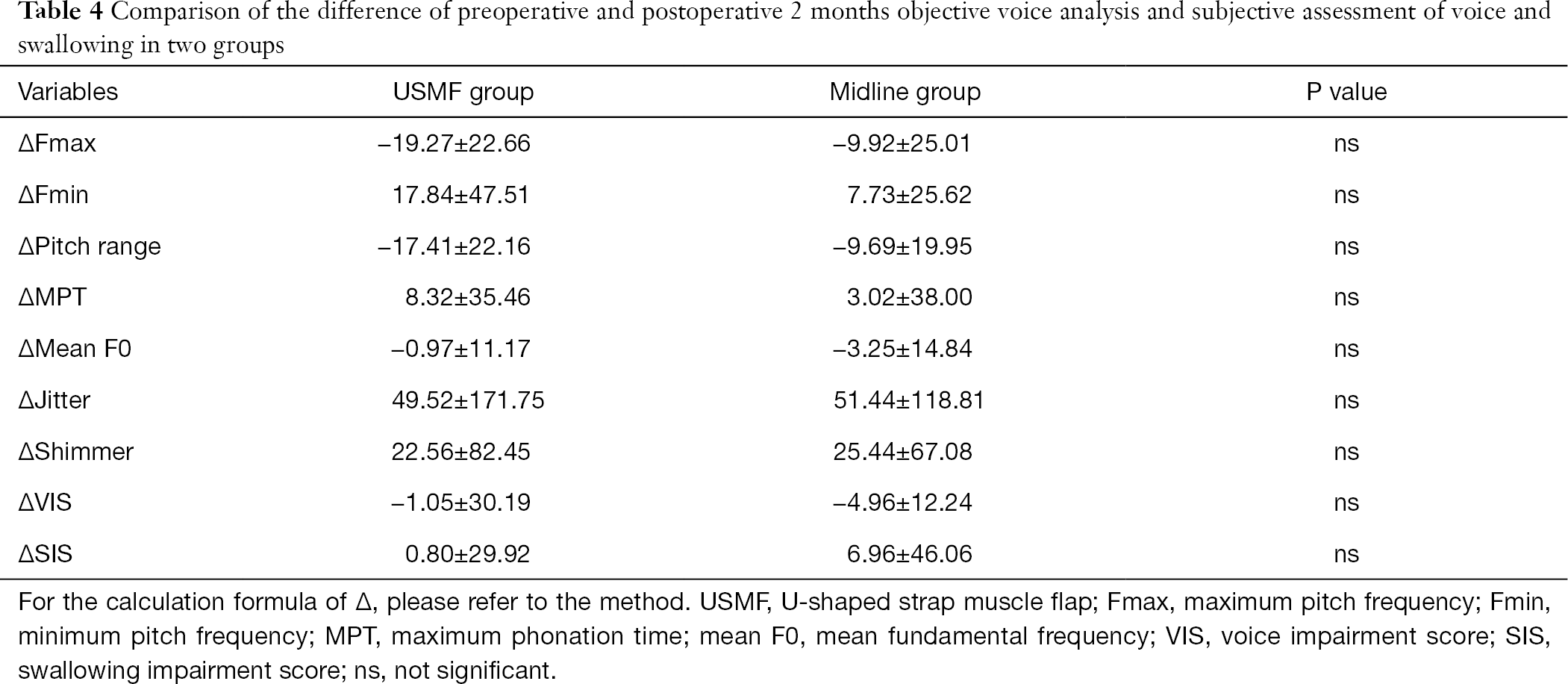

Table 4 Comparison of the difference of preoperative and postoperative 2 months objective voice analysis and subjective assessment of voice and swallowing in two groups
Full table

Discussion

Large goiter, Graves’ disease and thyroid cancer are associated with increased complication rates in thyroid surgery. For example, after thyroidectomy, large thyroid glands and Graves’ disease are risk factors for hematoma and prolonged hypocalcemia (2-4). Thyroid cancer patients who have received neck dissection also have an increased risk of hypoparathyroidism and RLN injury after thyroidectomy (5,6). The major complications of thyroid surgery include RLN injury, external branch of superior laryngeal nerve (EBSLN) injury, and permanent hypoparathyroidism, besides, over-traction of tissue or prolonged surgical time also results in postoperative sequelae (7). Therefore, adequate exposure of the surgical field and meticulous dissection are essential for a successful thyroid surgery. The USMF approach is a selectable method to minimize these complications by providing wide surgical exposure.

The reported effects of partial or complete resection of strap muscles on voice and swallowing performance widely vary. A comprehensive literature review by Vilkman et al. (8) concluded that changes in a complex interactive system such as the external laryngeal frame (including the sternothyroid and sternohyoid muscles) can result in increased or decreased voice pitch. In Sonninen et al. (9), 50 thyroidectomy patients who had received bilateral division of the strap muscles were compared with 50 thyroidectomy patients who had received unilateral division or no division of the strap muscles. The authors concluded that the unilateral group had better high voice pitch outcomes.

However, other studies of unilateral and bilateral strap muscle division (10,11) and sternothyroid muscle division (12) have concluded that these procedures have no subjective or objective functional sequelae. Partial cutting of the sternothyroid muscle at the laryngeal head at the insertion point of the sternothyroid muscle along the thyroid cartilage is reportedly a safe surgical technique for exposing the superior pole of the thyroid gland to facilitate isolation and ligation of the vascular pedicles of the superior pole and for enabling easy identification and preservation of the EBSLN (13).

The reported prevalence of symptoms in preoperative thyroidectomy patients widely varies from 11% to 88% (14-16). As thyroid volume increases, preoperative compressive symptoms may increase (14) whereas PR may decrease (17). The preoperative assessments in our study showed that the USMF group had significantly higher VIS and SIS compared with the midline group, which suggests that patients treated by USMF approach may tend to have a larger thyroid volume or greater disease severity compared to those treated by midline approach.

Some studies have reported substantial changes in objective voice analysis results after thyroid surgery, including decreased habitual pitch, decreased vocal performance (e.g., decreased frequency and intensity range), and increased perturbation parameters (e.g., increased shim, jitt, noise-to-harmonic ratio, and voice turbulence index) (18-21). Changes in voice and swallowing have been reported in patients who have received the conventional midline approach (22,23). In our study, Fmax and PR significantly decreased 2 months after both USMF and midline approach. Other parameters did not significantly differ. Lee et al. (13) similarly reported that patients who had received thyroidectomies that required partial cutting of the sternothyroid muscle had decreased Fmax at 2 weeks post-surgery. Lombardi et al. (23) reported that objective parameters recorded preoperatively and at 3 months post-surgery did not significantly differ. Our study similarly showed that VIS significantly increased in the midline group (P=0.010). In the USMF group, VIS did not significantly differ; in fact, VIS slightly improved (16.13±6.87 preoperatively and 15.70±4.91 postoperatively). We hypothesize that the USMF group had larger improvements in VIS because patients in the USMF group was more likely to have large goiter or thyroid tumor decompression.

For an accurate comparison of changes in voice and swallowing parameters, preoperative and postoperative Δ values were compared between the two groups. Between-group comparisons before surgery and 2 months after surgery showed no significant differences in Δ. Therefore, we conclude that the voice and swallowing outcomes obtained by USMF approach were not inferior to those obtained by midline approach.

Several causes of voice alteration in thyroidectomy patients without EBSLN injury or RLN injury have been postulated, including orotracheal intubation, modification of vascular supply and venous drainage of the larynx, impairment of laryngotracheal movement, injury to the cricothyroid muscle, local pain in the neck, and psychological reaction to postoperative outcome (18,24-27).

The USMF surgical technique provides wide exposure of the surgical field in patients who require difficult thyroid surgery. The technique facilitates gland exposure and vessel ligation and facilitates preservation of the EBSLN, the RLN, the cricothyroid muscles, and the PG in thyroid surgery. This analysis of patients treated by USMF technique showed good preservation of the EBSLN, RLN and cricothyroid muscles, and no patients had postoperative hematoma or permanent hypoparathyroidism.

Some limitations of this study are noted: (I) this was not a randomized study; (II) the case number was small; and (III) long-term subjective and objective analyses of voice/swallowing performance were not performed. Further studies are needed to investigate long-term changes in voice and swallowing function after strap muscle transection.


Conclusions

By providing excellent exposure of the surgical field, USMF facilitates gland exposure, vessel ligation, preservation of the EBSLN, RLN, cricothyroid muscles, and preservation of the PG during difficult thyroid surgery. None of the patients analyzed in this study had postoperative wound infection, flap necrosis or hematoma. The results for objective voice analysis and subjective assessments of voice and swallowing before and 2 months after surgery showed comparable outcomes in the USMF group and the midline group. Therefore, USMF can be a safe and selectable approach for difficult thyroid surgeries.
